Quick Details

  • Condition: New
  • Cooling Type: Cross Flow
  • Material: Thermal Formed PVC
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Lanyu
  • Model Number: CTF
  • Voltage: 220V/240V/380V/480V
  • Power(W): Max. 21.5kW
  • Dimension(L*W*H): 12ft * 32inches
  • Weight: 54 Kg
  • Certification: ISO9001:2008
  • Warranty: within 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: crossflow , counterflow cooling tower
  • Product name: High quality round cooling tower fill used in water treatment plant
  • PVC Sheet Thickness: 0.25mm,0.40mm
  • Width: 915mm, 1520mm, 1220mm
  • Sheet Spacing: 19mm
  • Specific Gravity: 1.5
  • Tensile Modulus: 325,000 psi
  • Tensile Strength: 6,300 psi(at room temperature)
  • Water temperature:: -35~70℃
  • Cooling tower fill types: marley cooling tower fill, EAC cooling tower fill, etc

Packaging & Delivery

Packaging Details packed in fumigated wooden pallet, wooden case or according to buyer requirements
Delivery Time within 7-15 days
Product Description
Different types about cooling tower fill
High quality round cooling tower fill used in water treatment plant

EAC cooling tower fill

 EAC Evaporative Condenser is best suited for a project. The information contained within this section is geared towards the use of evaporative condensers in the HVAC and light industrial markets only. There are two types of evaporative condensers: combined flow and counterflow.


Material: PVC(polyvinyl chloride)
Water temperature: -35~70℃
Application: cross-flow cooling tower
Sheet thickness: 0.25-0.45mm
Sheet width: 1330mm
Sheet length: customized
Color: black and gray

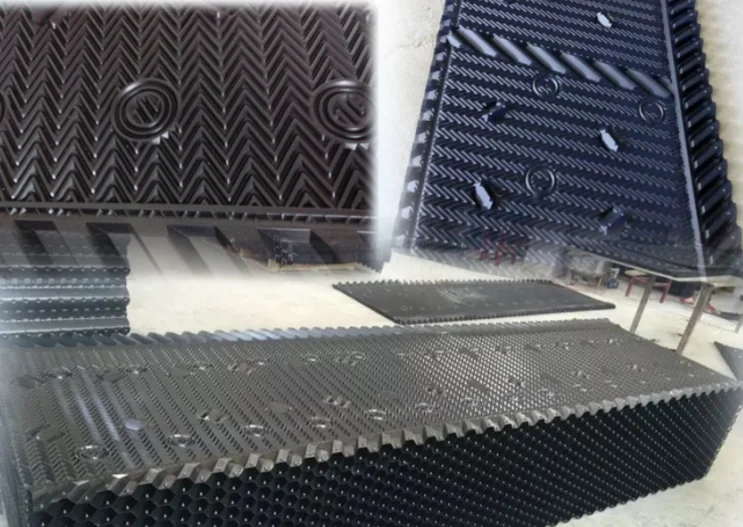

Marley cooling tower fill

Marley cooling tower fill material is a hanging film type cooling tower fill which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This fill provides much more water surface exposure per cubic foot than splash type fill.


Material: Thermal Formed PVC
Water temperature: 35~70℃
Tensile Strength: 6,300 psi(at room temperature)
Tensile Modulus: 325,000 psi
Specific Gravity: 1.50
Maximum Continuous Hot Water Temperature: 52℃
PVC Sheet Thickness: 0.25mm,0.40mm
Sheet Spacing: 19mm

Liangchi Cooling tower fill

It has the advantages of direct replacement, performance enhancement, and water condition compatibility. Allow various heat loads, flow rates, water quality, and horse power combinations selections.


Material: PVC/PP
Water temperature: -35~70℃
Application: cross-flow cooling tower
Sheet Thickness: 0.25-0.45mm
Gap:20mm
Sheet width: 750mm/1000mm
Sheet length: Customized

Normal Size of Liangchi cooling tower fill:750*1600mm,750*800mm,750*400mm.

Kunken cooling tower fill

Kuken cooling tower fill is made from PVC injection molding under high pressure,it has special structure form, not only certain stiffness, but some flexibility.
Due to good elasticity, the filler would chatter under the water-drop impact effect lead to some water drop rebound to above for water redistribution.

Material: Thermal Formed PVC
Water temperature:-35℃~70℃
Application: square(cross flow) cooling tower
Sheet thickness: 0.25-0.45mm
Sheet gap: 19mm
Sheet width: 730mm 750mm 950mm
Sheet length:customized

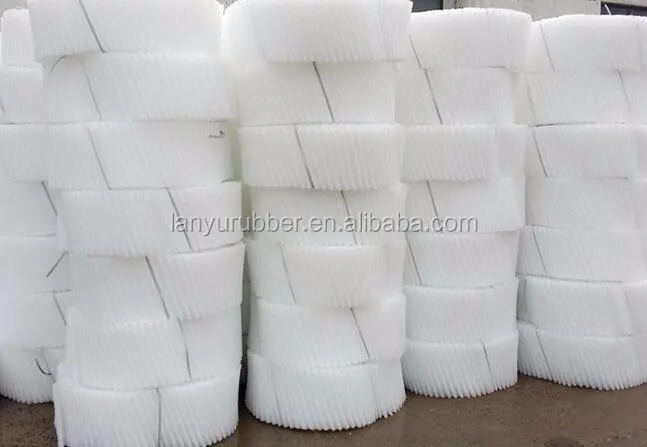

Round type cooling tower fill

Fill material : PVC / PP
Fill color:Black / blue
Fill Height: 200/250/300mm  length: any
Fill sheet thickness :0.35mm-0.6mm
Working temperature  :-30℃-120℃

Normal Size: 500mmX1000mm

Spindle Cooling Tower Fill

Material:Thermal Formed PV
Application: Cross Flow cooling tower
Sheet thickness: 0.25-0.45mm
Sheet spacing:16mm,18mm
Sheet width: 850mm,1000mm
Sheet length: 1000mm,or Customized
Color: black or gray

Oblique cooling tower fills

Oblique cooling tower fills also called cross-fluted film fill media manufactured from rigid PVC sheets conforming to CTI STD-136 for cooling tower heat-transfer applications. The media is fabricated from corrugated PVC sheets that are solvent-welded for maximum strength and resistant to UV, rot, fungus, organic and inorganic solvents, acids, alkalis, and chemicals normally found in cooling tower waters.


Material: PVC,PP
Water temperature: -35~70℃
Application: counter-flow cooling tower
Sheet pitch:12/15/19mm
Sheetwidth:200mm,250mm,250mm,300mm,350mm
Sheet thickness 0.35-0.6mm

Color: Black,green,blue,etc.
Density: 1.39-1.45g/cm³

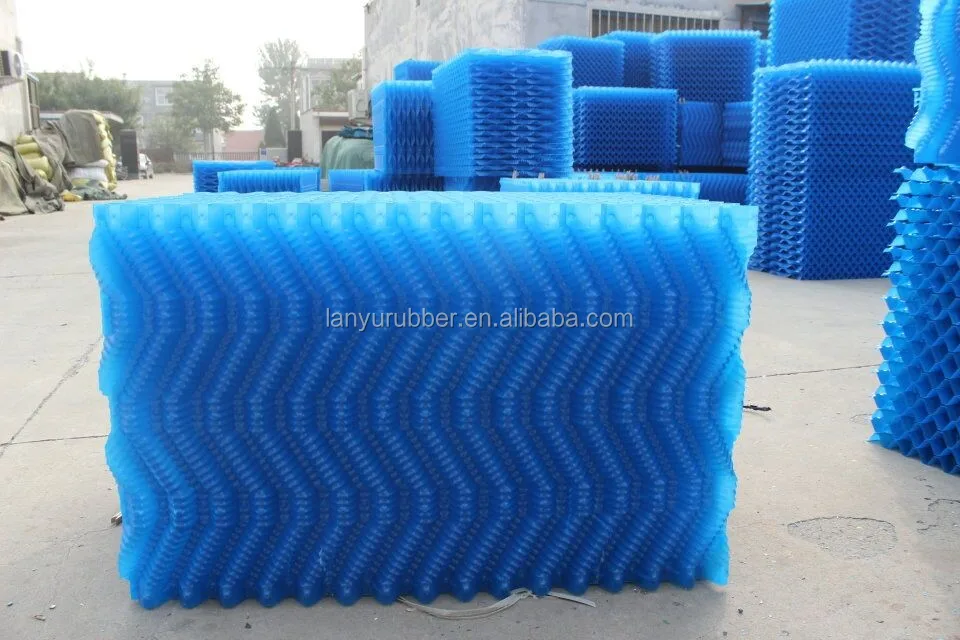

S Wave Counter Flow PVC Cooling Tower Fill

 S wave filler is one of the most important components for exchange of gas and water in cooling tower. It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation.

With the development of the plastic industry, counter-current tower drench water plastic packing "S" shape ladder wave, obliquely wave, which has the heat dissipation ,good performance ,Ventilated small resistance, durable, based on the easy and other advantages, it is widely used in different types of large, medium, small, cooling tower.


Size: Width 500mm, length 800-1400mm.
 Thickness: 0.2~0.4mm
 Applicable Temperature: 65°C~-35°C
 Color: Blue, black, green etc
Shaping mode: Compression molding
 Cooling Tower type: Counter flow

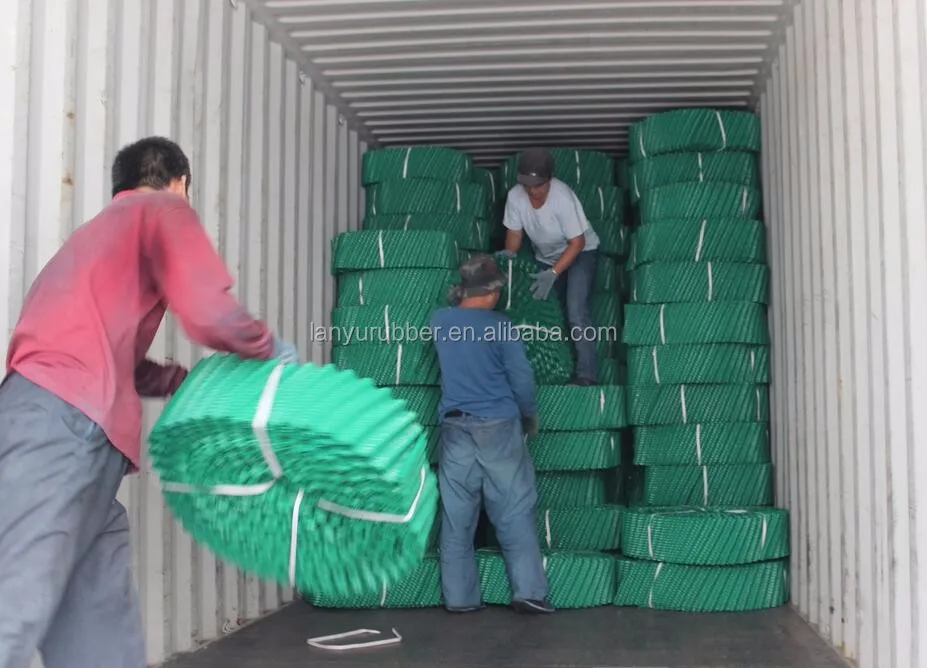

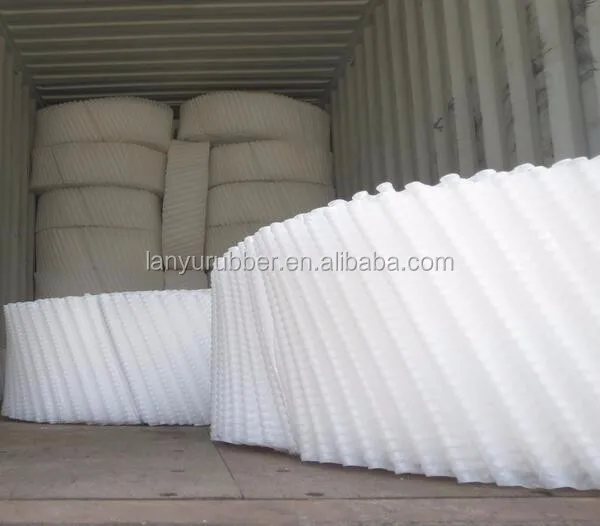

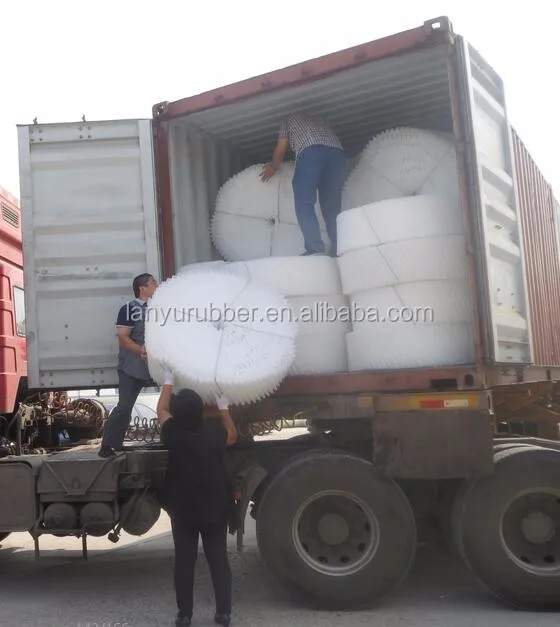

High quality round cooling tower fill used in water treatment plantl packing and dilivery

Packaging Details:
Cooling Tower Fill can be packed by wooden pallet, wooden crate or as your request
Delivery Detail:
Shipped in 7 days after payment
Related Products

High quality round cooling tower fill used in water treatment plant

Our related products

Hebei Lanyu Rubber and Plastic products company supply you cooling tower fills, which is belong to couterflow cooling tower fills,. and use it for square water cooling tower very much more.We also can provide you related products such as MBBR media ,Bio ball infill media, Biochemical ball filter, Elastic fill, Combined fill also we can supply all kind of cooling tower fill nozzles . If any of our products meet your demand ,please contact us in time .
